Table "ERGO"

Complex for skills refreshment of fine motor skills

The complex is designed to perform integrated exercises to refresh fine motor skills in physical and functional rehabilitation.

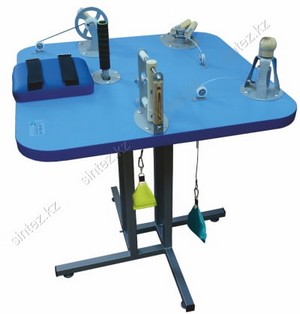

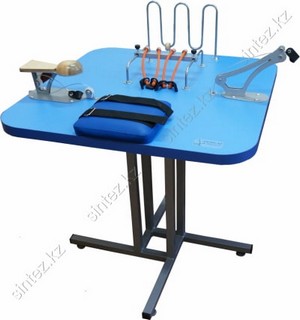

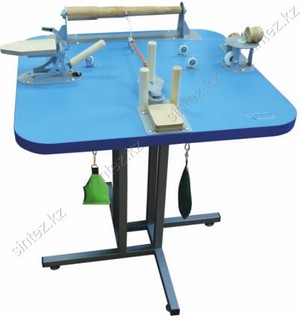

The complex consists of 3 tables with laminated or wooden surface, on one table from 1 to 4 trainers may be installed. The total number of trainers is 13 types.
Device description: the tabletop is mounted on a metal rack. Under the tabletop on the loading cable of the trainers for the carbines the required loads are attached. The trainers are universal for the left and right hands.

Responsive image Responsive image Responsive image

Sack 1kg – 235/165mm
Sack 0.5kg – 190/1305mm
Sack 0.3kg – 190-130mm

Indications for use of trainers:

  • Recovery after ischemic, hemorrhagic stroke.
  • Improvement of coordination of hand and finger movements.
  • Recovery of upper and lower limb function in spinal injury,
  • Restoration of function of the upper limb after trauma, burn, orthopedic surgery.
  • Tremor in the extremities, bradykinesia caused by neurological diseases such as Parkinson disease.
  • Strengthening the upper extremities of patients with multiple sclerosis.
  • In pediatric cerebral palsy, including spastic, ataxic, athetoid and mixed forms of cerebral palsy.
  • Dispersions characterized by awkward movements.
  • Benign essential tremor.

Functionality:

  • Restoration of function of capture.
  • Restoration of hand and finger functions due to neurological disease (stroke, multiple sclerosis, Parkinson disease, cerebral palsy, Peripheral neuropathy, traumatic brain injury).
  • Restoration of the functions of the hand and fingers in orthopedic diseases in the postoperative period.
  • Restoration of functions of the hand and fingers in case of lack of coordination of movements.
  • Hands clenching and unclenching.
  • Training of the fingers, including the thumb.
  • Opposable thumb.
  • Stoop and stretch of all fingers together.
  • Stoop and stretch of each finger separately.
  • Isolated movements in the proximal and distal phalanges of the fingers.

Technical specifications:

Overall dimensions of 1 table (L/W/H):

760/760/770 mm

Overall dimensions of trainers:

T1

260/220/65 mm

T2

580/135/135 mm

T3

225/90/200 mm

T4

290/100/170 mm

T5

255/110/85 mm

T6

200/265/60 mm

T7

330/120/165 mm

T8

130/130/205 mm

T9

200/100/140 mm

T10

195/120/130 mm

T11

335/110/255 mm

T12

340/300/240 mm

T13

290/35/220 mm

Т14

290/35/80 mm

The complex includes the following types of trainers:

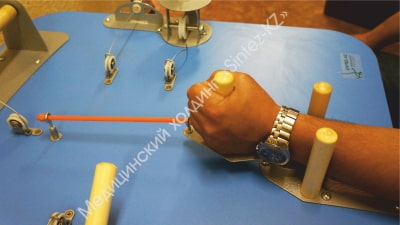

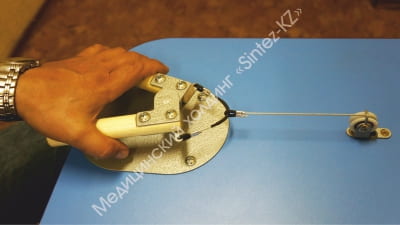

Responsive image Т1  - exercises for flexion of the 2-5 fingers with
elastic impedance

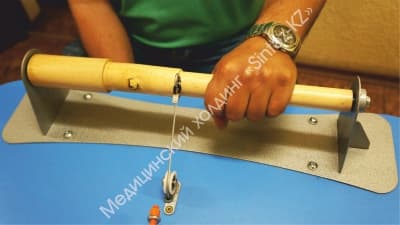

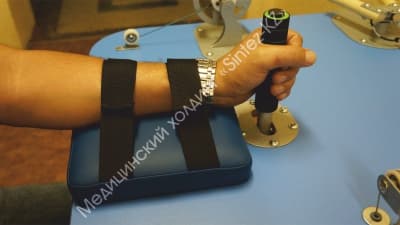

Responsive image Т2  - exercises for cylindrical grip of the hand

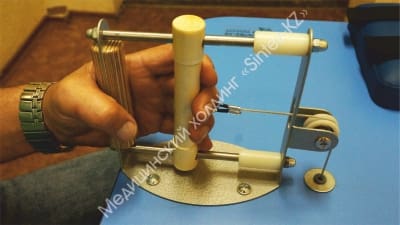

Responsive image Т3  - exercise for
opposable thumb
in relation to the
II-V fingers

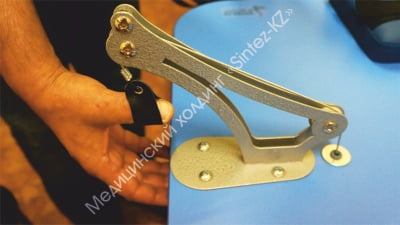

Responsive image Т4 - exercise on the flexion of the fingers in opposition to thumb
Responsive image Т5 - exercise for
tightening of round shape grip in 2 directions-upstairs and on yourself
Responsive image Т6  - exercise on the grip by the fingers in the position of the
cramps
Responsive image Т7  - exercise on the dorsal and palmar flexion of the wrist

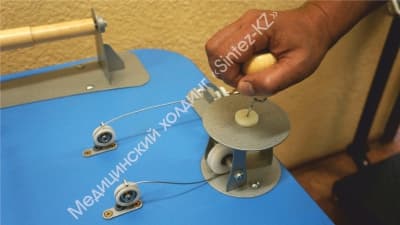

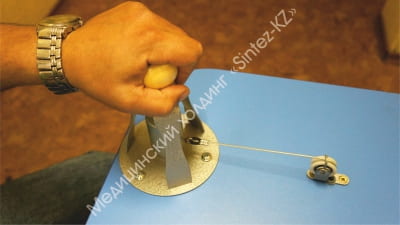

Responsive image Т8 -exercise, twist with
resistance

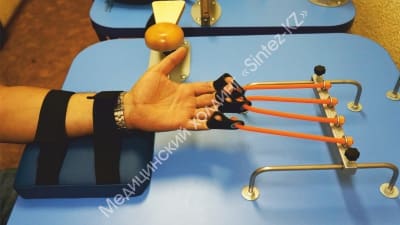

Responsive image Т9 - exercise on extension fingers with a load

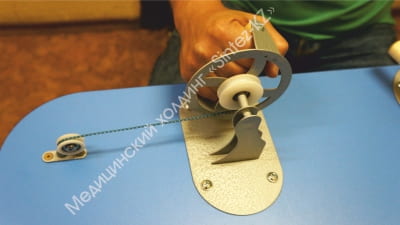

Responsive image Т10 - exercise of forearm pronation and supination
Responsive image Т11 - exercise of adduction and derivation in the sagittal plane in the wrist
Responsive image Т 12 - exercise pronation-supination of the wrist joint with elastic impedance

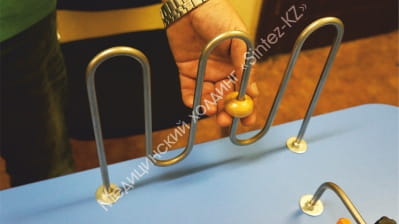

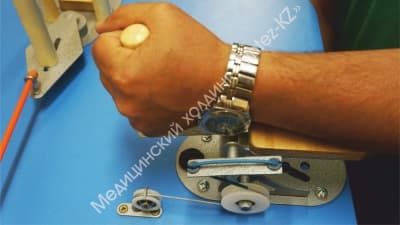

Responsive image Т 13 - exercise spiral movement
of the hand in a vertical or
horizontal surface
